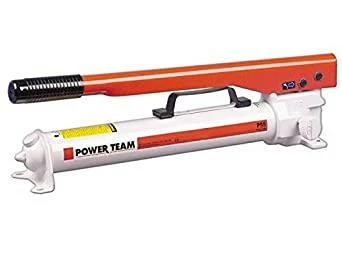

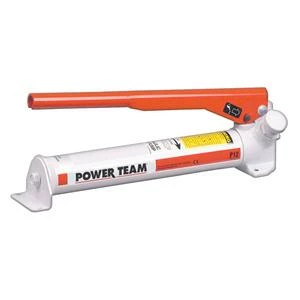

SPX Power Team Single Acting Manual Pump, 1-Speed Shop Equipment
Original price was: $483.00.$89.99Current price is: $89.99.
- Nature-friendly materials, for a better planet.
- The Quality Choice for Smart Shoppers
- There are quality problems, free return and exchange
- Free Shipping over $25
12 to 55 cu. in. Single-Speed, Single-Acting
BEST SUITED FOR APPLICATIONS WHERE THERE IS LITTLE OR NO FREE TRAVEL.
- All metal construction, won’t burn through in welding environments.
- Formed metal handle provides less flex, and reduces operator fatigue.
- Convenient fill port on P23 and P55 allows pumps to be filled in a horizontal or vertical position.
- Fill cap seal acts as safety valve preventing over-pressurizing of reservoir.
- Relief valve inboard of check valve prevents loads from drifting down.
- Large valve knob gives added control for slowly metering loads down.
| SPECIFICATIONS | |
| FOR USE WITH CYLINDER TYPE | Single-Acting |
| SPEED | 1 |
| HANDLE EFFORT (LBS. [KG.]) | 75.0 [34] |
| RESERVOIR OIL CAPACITY (CU. IN. [CU. CM.]) | 12.0 [197] |
| RESERVOIR USABLE OIL CAPACITY (CU. IN. [CU. CM.]) | 9.0 [148] |
| HP MAXIMUM PRESSURE (PSI [BAR]) | 10,000 [700] |
| HP VOLUME PER STROKE (CU. IN. [CU. CM.]) | 0.069 [1,1] |
| OIL PORT (IN.) | 3 |
| A (IN. [MM.]) | 4.00 [102] |
| B (IN. [MM.]) | 13.00 [330] |
| C (IN. [MM.]) | 2.06 [52] |
| D (IN. [MM.]) | 4.00 [102] |
| E (IN. [MM.]) | 13.50 [343] |
| F (IN. [MM.]) | 3.38 [86] |
| G (IN. [MM.]) | 2.19 [56] |
| H (IN. [MM.]) | 11.50 [292] |
| J (DEG.) | 45 |
| K (IN. [MM.]) | 0.19 [5] |
| L (IN. [MM.]) | 3.38 [86] |
| M | 3 |
| N (IN. [MM.]) | 1.13 [29] |
| WEIGHT (LBS. [KG.]) | 5.7 [2,6] |
| SPECIFICATIONS | |
| FOR USE WITH CYLINDER TYPE | Single-Acting |
| SPEED | 1 |
| HANDLE EFFORT (LBS. [KG.]) | 70.0 [32] |
| RESERVOIR OIL CAPACITY (CU. IN. [CU. CM.]) | 23.8 [390] |
| RESERVOIR USABLE OIL CAPACITY (CU. IN. [CU. CM.]) | 20.3 [333] |
| HP MAXIMUM PRESSURE (PSI [BAR]) | 3,000 [210] |
| HP VOLUME PER STROKE (CU. IN. [CU. CM.]) | 0.160 [2,6] |
| OIL PORT (IN.) | 3 |
| A (IN. [MM.]) | 6.25 [159] |
| B (IN. [MM.]) | 13.00 [330] |
| C (IN. [MM.]) | 3.50 [89] |
| D (IN. [MM.]) | 5.56 [141] |
| E (IN. [MM.]) | 13.63 [346] |
| F (IN. [MM.]) | 4.25 [108] |
| G (IN. [MM.]) | 3.25 [83] |
| H (IN. [MM.]) | 10.31 [262] |
| J (DEG.) | 38 |
| K (IN. [MM.]) | 0.19 [5] |
| L (IN. [MM.]) | 4.75 [121] |
| M | 3 |
| N (IN. [MM.]) | 1.63 [41] |
| WEIGHT (LBS. [KG.]) | 12.0 [5,5] |
| SPECIFICATIONS | |
| FOR USE WITH CYLINDER TYPE | Single-Acting |
| SPEED | 1 |
| HANDLE EFFORT (LBS) | 145 |
| RESERVOIR OIL CAPACITY (CU. IN.) | 55 |
| RESERVOIR USABLE OIL CAPACITY (CU. IN.) | 45 |
| HP MAXIMUM PRESSURE (PSI) | 10,000 |
| HP VOLUME PER STROKE (CU. IN.) | 0.16 |
| OIL PORT (IN.) | 3/8 NPFT |
| WEIGHT (LBS.) | 15.8 |
| Size | P12, P23, P55 |
|---|
