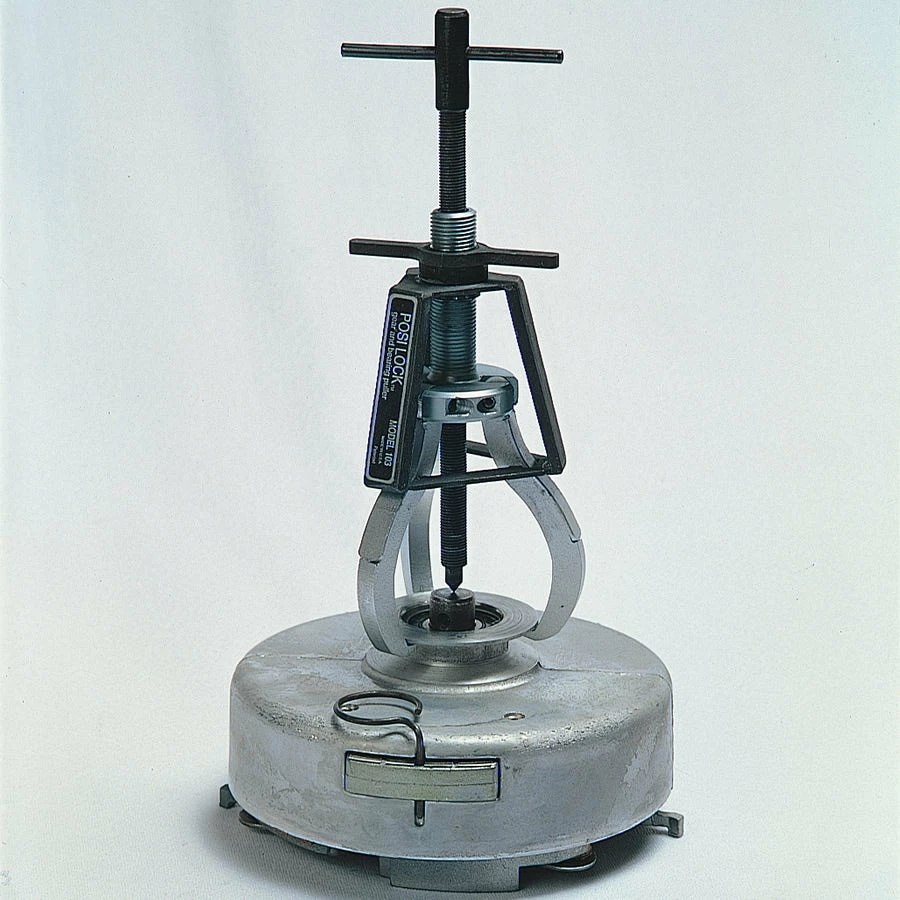

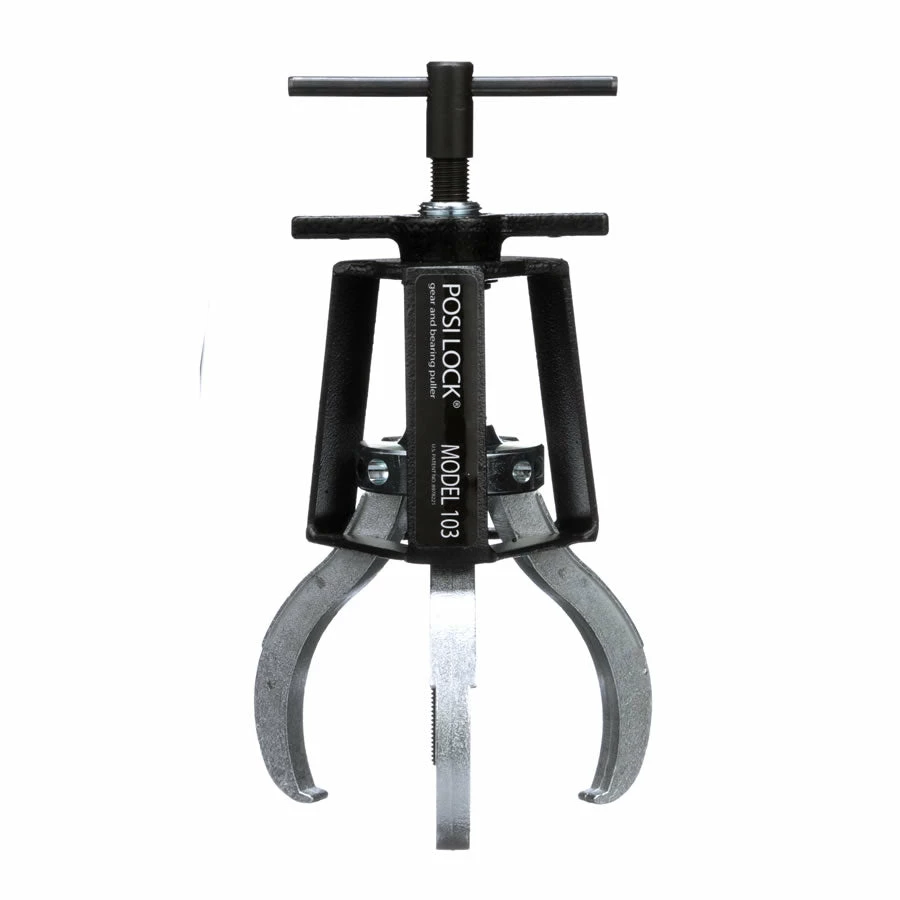

- Model 103
- Jaws: 3
- Capacity: 2 ton (18 kN)
- Reach (B): 3 in (76.2 mm)
- Spread Range (C): .25 to 4.5 in (6.4 to 114.3 mm)
- Weight: 1.3 lbs (.59 kg)
- Center Bolt Diameter (A): .37 in (9.4 mm)
- Overall Length (D): 7 in (177.8 mm)
- Jaw Width (E): .31 in (8 mm)

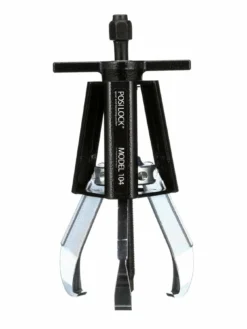

- Model 104
- Jaws: 3
- Capacity: 5 ton (44 kN)
- Reach (B): 4 in (102 mm)
- Spread Range (C): .5 to 5 in (13 to 127 mm)
- Weight: 4.1 lbs (1.9 kg)
- Center Bolt Diameter (A): .5 in (12.7 mm)
- Overall Length (D): 10.05 in (255.3 mm)
- Jaw Width (E): .62 in (15.8 mm)
- Hex Socket Size (F): .75 in (19 mm)
- Maximum Torque: 40 ft./lb. (54 N·m)

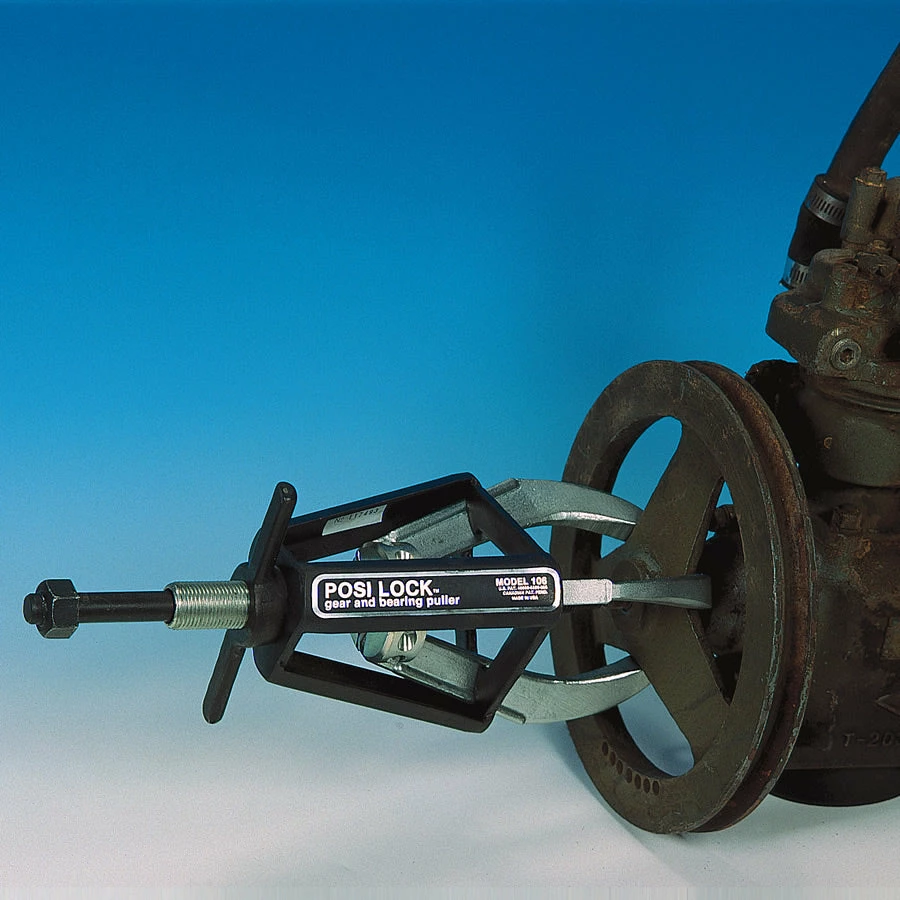

- Model 106
- Jaws: 3
- Capacity: 10 ton (89kN)
- Reach (B): 6 in (152 mm)
- Spread Range (C): .5 to 7 in (13 to 178 mm)
- Weight: 8 lbs (3.6 kg)
- Center Bolt Diameter (A): .62 in (15.8 mm)
- Overall Length (D): 13.32 in (338.3 mm)
- Jaw Width (E): .75 in (19 mm)
- Hex Socket Size (F): .75 in (19 mm)
- Maximum Torque: 130 ft./lb. (176 N·m)

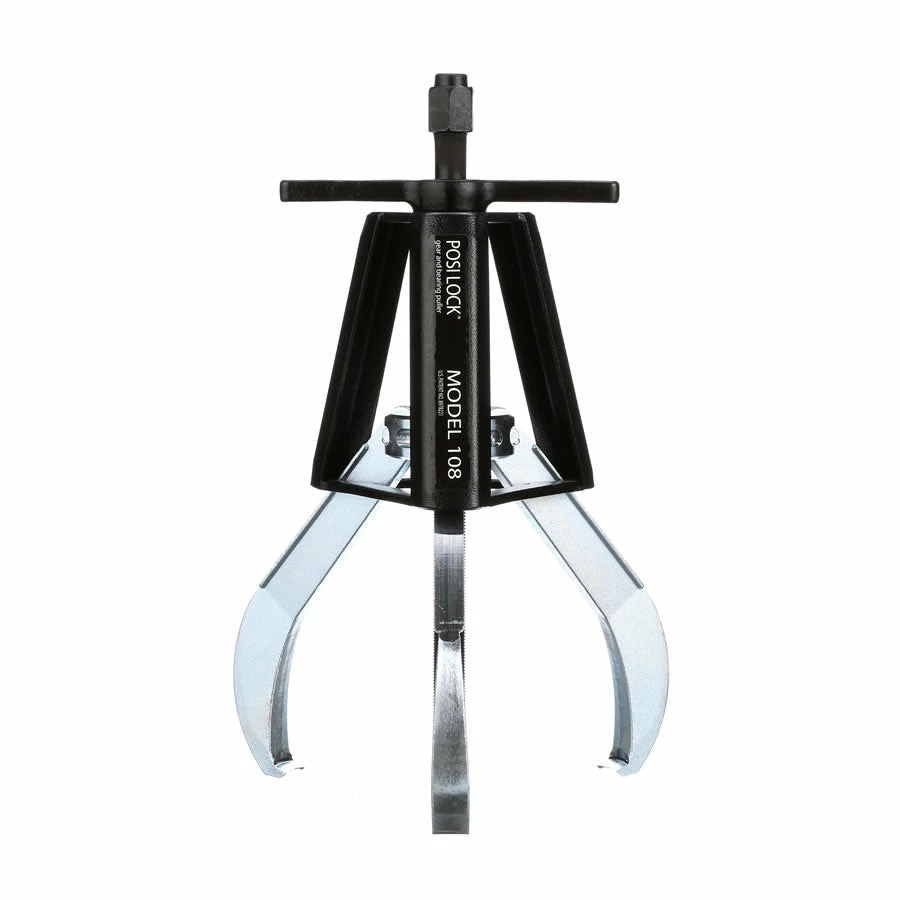

- Model 108
- Jaws: 3
- Capacity: 17 ton (151 kN)
- Reach (B): 8 in (203 mm)
- Spread Range (C): .75 to 12 in (19 to 305 mm)
- Weight: 14 lbs (6.4 kg)
- Center Bolt Diameter (A): .75 in (19 mm)
- Overall Length (D): 16.25 in (412.8 mm)
- Jaw Width (E): .88 in (22.2 mm)
- Hex Socket Size (F): 1 in (25.4 mm)
- Maximum Torque: 220 ft./lb. (297 N·m)

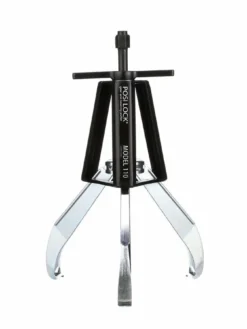

- Model 110
- Jaws: 3
- Capacity: 20 ton (178 kN)
- Reach (B): 9.67 in (245 mm)
- Spread Range (C): 1 to 15 in (25 to 381 mm)
- Weight: 16 lbs (7.3 kg)
- Center Bolt Diameter (A): .75 in (19 mm)
- Overall Length (D): 20.41 in (518.4 mm)
- Jaw Width (E): 1 in (25.4 mm)
- Hex Socket Size (F): 1 in (25.4 mm)
- Maximum Torque: 275 ft./lb. (372 N·m)
