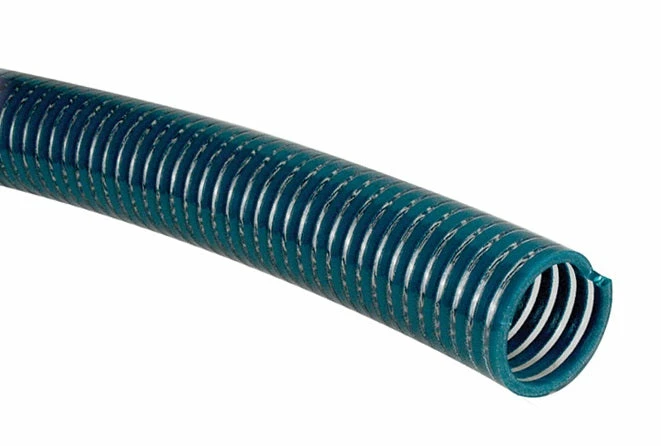

Greenline Hose And Fittings Green Helix PVC Suction Hose (Hose Only – No Ends)

Green Helix PVC water suction hose is a standard duty suction and discharge used in the rental, construction, municipal, and marine industries. This  hose has a smooth, abrasion and mild chemical resistant PVC interior, and an abrasion, weather and chemical resistant PVC exterior. Green PVC suction hose has a temperature range of -20°C to 55°C.

• Vacuum rating @ 20C: 28″ Hg.

• Temperature Range: -20°C to +55°C.

How to Order: If you would like a 20 foot coil of hose, select the “Per Foot” box. Then enter quantity of 20 in the “Add to Cart” box. This will ensure you get a 20 foot length of hose.

Hose Size	Working Pressure @ 20C	Working Pressure @ 40C	Bend Radius	Outside Diameter	Recommended SS Gear Clamp	Recommended SS Bolt Clamp
3/4″	110 PSI	70 PSI	3″	0.94″	0.69″ to 1.50″  G8-16	0.91″ to 0.98″  G94-2325
1″	85 PSI	60 PSI	3″	1.26″	0.75″ to 1.75″  G8-20	1.22″ to 1.34″  G94-3134
1-1/4″	85 PSI	60 PSI	4″	1.51″	1.06″ to 2.00″  G8-24	1.46″ to 1.57″  G94-3740
1-1/2″	70 PSI	50 PSI	5″	1.79″	1.31″ to 2.25″  G8-28	1.69″ to 1.85″  G94-4347
2″	65 PSI	45 PSI	7″	2.32″	2.06″ to 3.00″  G8-40	2.32″ to 2.48″  G94-5963
3″	65 PSI	40 PSI	10″	3.41″	3.06″ to 4.00″  G8-56	3.35″ to 3.58″  G94-8591
