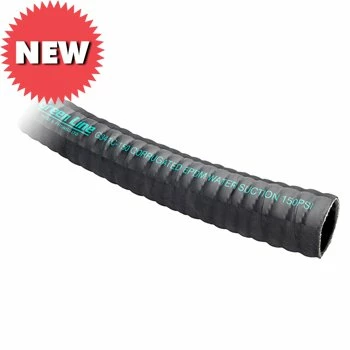

Greenline Corrugated EPDM Suction Hose (Hose Only – No Ends) Hose And Fittings

Corrugated EPDM Suction Hose is the heavy-duty and more flexible version of our black rubber suction hose. The EPDM tube and cover construction provides greater resistance to UV exposure and weathering. The corrugated design has greater flexibility and a smaller bend radius that uncorrugated versions.

This rubber hose is constructed with a smooth, black rubber tube reinforced by heavy wire helix embedded between layers of synthetic textile cords. It is covered by a black, abrasion resistant wrapped finish. The rubber construction of this suction hose provides excellent resistance to cuts, gouges, and weathering.

• Full vacuum rating: 29″ Hg.

• Temperature Range: -35°C to +100°C.

How to Order: If you would like a 20 foot coil of hose, select the “Per Foot” box. Then enter quantity of 20 in the “Add to Cart” box. This will ensure you get a 20 foot length of hose.

Hose Size	Working Pressure	Bend Radius	Outside Diameter	Recommended SS Gear Clamp	Recommended Bolt Clamp
1-1/2″	150 PSI	4″	1.89″	1.56″ to 2.50″  G8-32	1.85″ to 2.01″  G94-4751
2″	150 PSI	6″	2.44″	2.06″ to 3.00″  G8-40	2.32″ to 2.48″  G94-5963
3″	150 PSI	10″	3.50″	3.00″ to 5.00″  G8-72	3.35″ to 3.58″  G94-8591
4″	150 PSI	14″	4.53″	3.50″ to 5.50″  G8-80	4.41″ to 4.76″  G94-112121
6″	150 PSI	20″	6.69″	N/A	N/A
