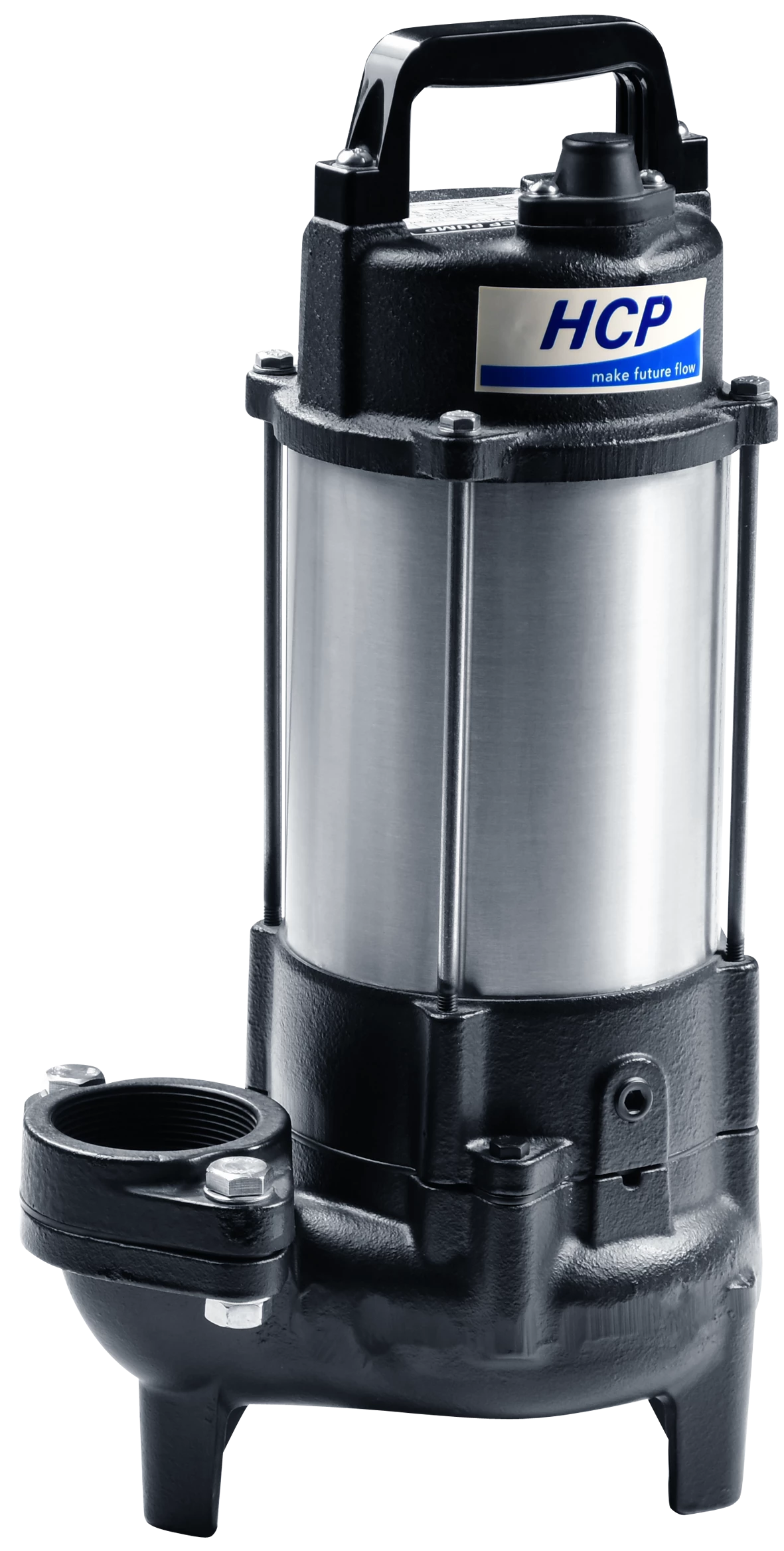

The Model F-05U HCP Submersible Effluent Pump can be used for effluent pumping, low pressure sewer applications and general dewatering of basements and tanks that have limited solids. The F-05U has a carbon/ceramic upper side and silicon/silicon lower side seal in an oil filled chamber filled with food grade oil. The upper cover, volute and impeller are made with cast iron. The motor frame is constructed with 304 stainless steel.
The motor is equipped with a built-in thermal protector to prevent pump overheating. An optional piggyback float switch can automatically control pump on/off function based on water level.
The Model F-05U HCP Effluent Pump measures 10″ x 6″ x 17″ tall and weighs 42 lbs.
-
2 Inch FPT Discharge, 1-3/8″ Solids Handling
-
1/2 HP, 120V, 6.2A., 3400 RPM. Cable Length is 30′
-

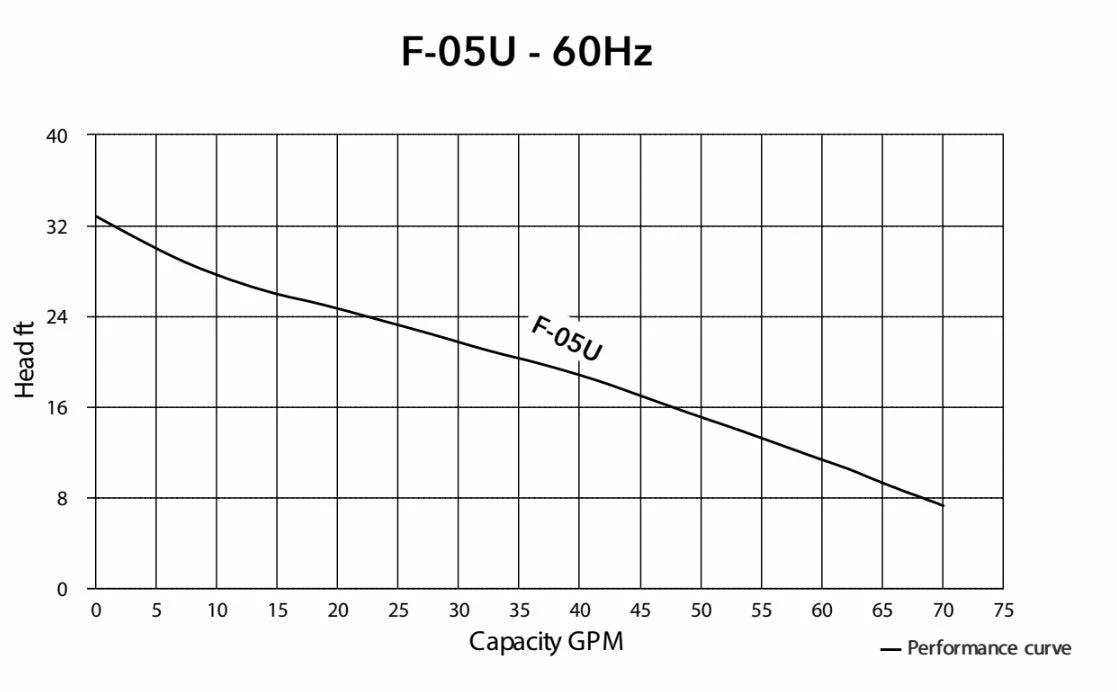

Max Flow: 70 GPM @ 7′ head
-
Max Head: 31′ head
-
cUL and CSA certified
