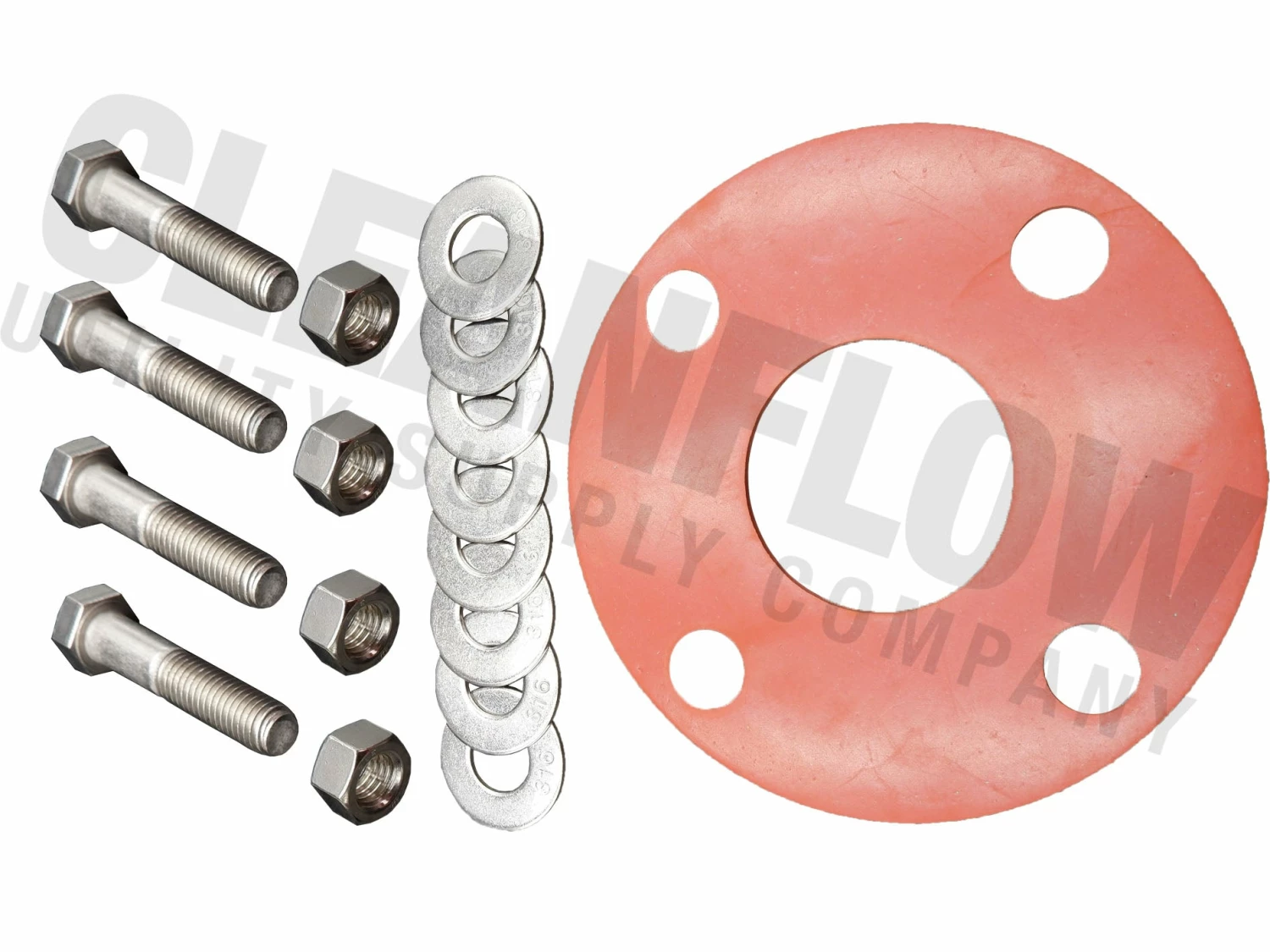

316 Stainless Steel Flange Bolt Packs include a 1/8″ thick full face red rubber flange gasket and the appropriate 316 stainless steel hardware to complete a 150# ANSI flange to flange connection.
These flange bolt kits are recommended for buried flange connections and flange installations in damp and corrosive atmospheres.
| FLANGE | BOLT SIZE | # OF BOLTS | # OF NUTS | # OF FLAT WASHERS |
| 2″ | 5/8″ X 2-3/4″ | 4 | 4 | 8 |
| 3″ | 5/8″ X 3″ | 4 | 4 | 8 |
| 4″ | 5/8″ X 3-1/4″ | 8 | 8 | 16 |
| 6″ | 3/4″ X 3-1/2″ | 8 | 8 | 16 |
| 8″ | 3/4″ X 4″ | 8 | 8 | 16 |
| 10″ | 7/8″X 4″ | 12 | 12 | 24 |
